Quantification Of Road Transport Particulate Matter Using Detailed Technology Emission Factors

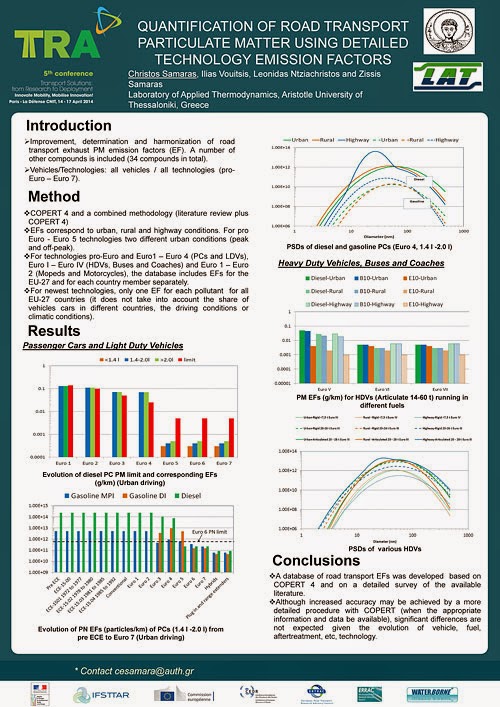

More than two weeks have passed since my last post. The reason for not publishing something new was a conference, in which I had to participate and present a part of my research work. The conference was the TRA 2014 and took place in Paris. I spent almost the entire previous week there. In the paragraphs below you will find a text version of one of the papers that I presented there. If you like, you can download the original poster version in PDF format. I hope that you will find it interesting. Maybe within the week I will publish another poster from the TRA conference.


  • Improvement, determination and harmonization of road transport exhaust PM emission factors (EF). A number of other compounds is included (34 compounds in total).
  • Vehicles/Technologies: all vehicles / all technologies (pro-Euro – Euro 7).


  • COPERT 4 and a combined methodology (literature review plus COPERT 4).
  • EFs correspond to urban, rural and highway conditions. For pre Euro - Euro 5 technologies two different urban conditions (peak and off-peak).
  • For technologies pre-Euro and Euro1 – Euro 4 (PCs and LDVs), Euro I – Euro IV (HDVs, Buses and Coaches) and Euro 1 – Euro 2 (Mopeds and Motorcycles), the database includes EFs for the EU-27 and for each country member separately.
  • For newest technologies, only one EF for each pollutant  for all EU-27 countries (it does not take into account the share of vehicles cars in different countries, the driving conditions or climatic conditions).


Passenger Cars and Light Duty Vehicles

Evolution Of Diesel PC PM Limit And Corresponding EFs

Evolution of diesel PC PM limit and corresponding EFs (g/km) (Urban driving).

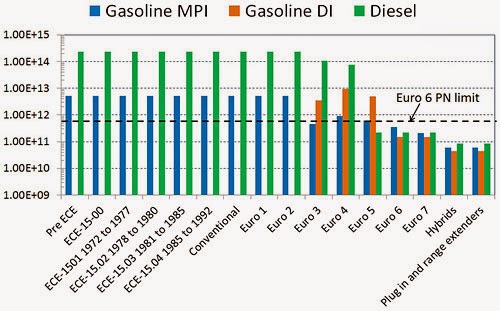

Evolution Of PN EFs (Particles-km) Of PCs (1.4 l -2.0 l) From Pre ECE To Euro 7

Evolution of PN EFs (particles/km) of PCs (1.4 l -2.0 l) from pre ECE to Euro 7 (Urban driving).

PSDs Of Diesel And Gasoline PCs (Euro 4, 1.4 l -2.0 l)

PSDs of diesel and gasoline PCs (Euro 4, 1.4 l -2.0 l).

Heavy Duty Vehicles, Buses and Coaches

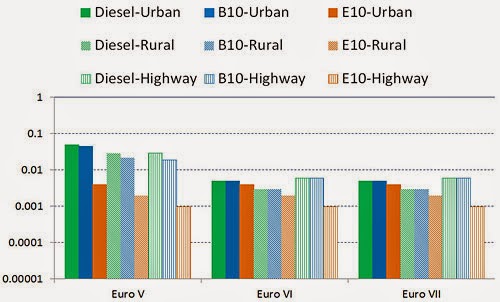

PM EFs (g-km) For HDVs (Articulate 14-60 t) Running In Different Fuels

PM EFs (g/km) for HDVs (Articulate 14-60 t) running in different fuels.

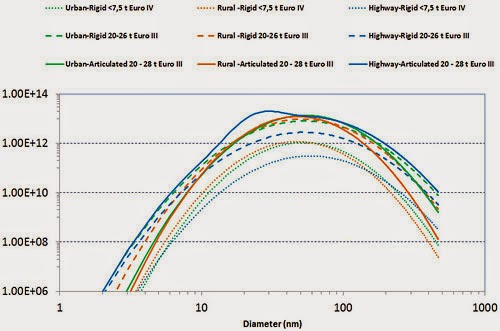

PSDs Of Various HDVs

PSDs of  various HDVs.


  • A database of road transport EFs was developed  based on  COPERT 4 and on a detailed survey of the available literature.
  • Although increased accuracy may be achieved by a more detailed procedure with COPERT (when the appropriate information and data be available), significant differences are not expected given the evolution of vehicle, fuel, aftertreatment, etc, technology.



The file is in PDF format.
